| Place of Origin: | Shangdong Province |
|---|---|
| Hàng hiệu: | MCLLROY |
| Chứng nhận: | ISO/CE |
| Model Number: | FD30T |
| Minimum Order Quantity: | 1 SET |
| Giá bán: | 4500-6500 USD |
| Packaging Details: | bubble cotton，fixed fasten package |
| Delivery Time: | 5-8 working day |
| Supply Ability: | 300 SETS/MONTH |
| Rate Loading Weight: | 3000 KG | Mast Stage: | 2 Normal /2 Fully free/3 Fully free |
|---|---|---|---|
| Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power: | 36.8/35.3/35.4 KW | Transimission: | Hydraulic Manual /Auto 2R，0，2F |
| Fork Size: | 920/1070/1220/1500 mm | Loại lốp: | Không khí / rắn |
| Lốp trước: | 12-16.5-10PR | Lốp sau: | 12-16.5-10PR |
| Chiều cao bảo vệ trên cao: | 2450 mm | Tổng chiều dài: | 3090mm không có phuộc |
| Chiều rộng tổng thể: | 1600 mm | Overall Height: | 4350mm |
| Total Weight: | 4900 KG | Angle of Mast inclination: | 6°/12° |
| Load Center: | 500 mm | Minimum Ground Clearance(no-loading): | 250 mm |
| Wheel Base: | 1840 mm | ||
| Làm nổi bật: | Xe nâng địa hình gồ ghề,Xe nâng mạnh mẽ,12-16.5-10PR Xe nâng lốp sau |
||
1. Products Description

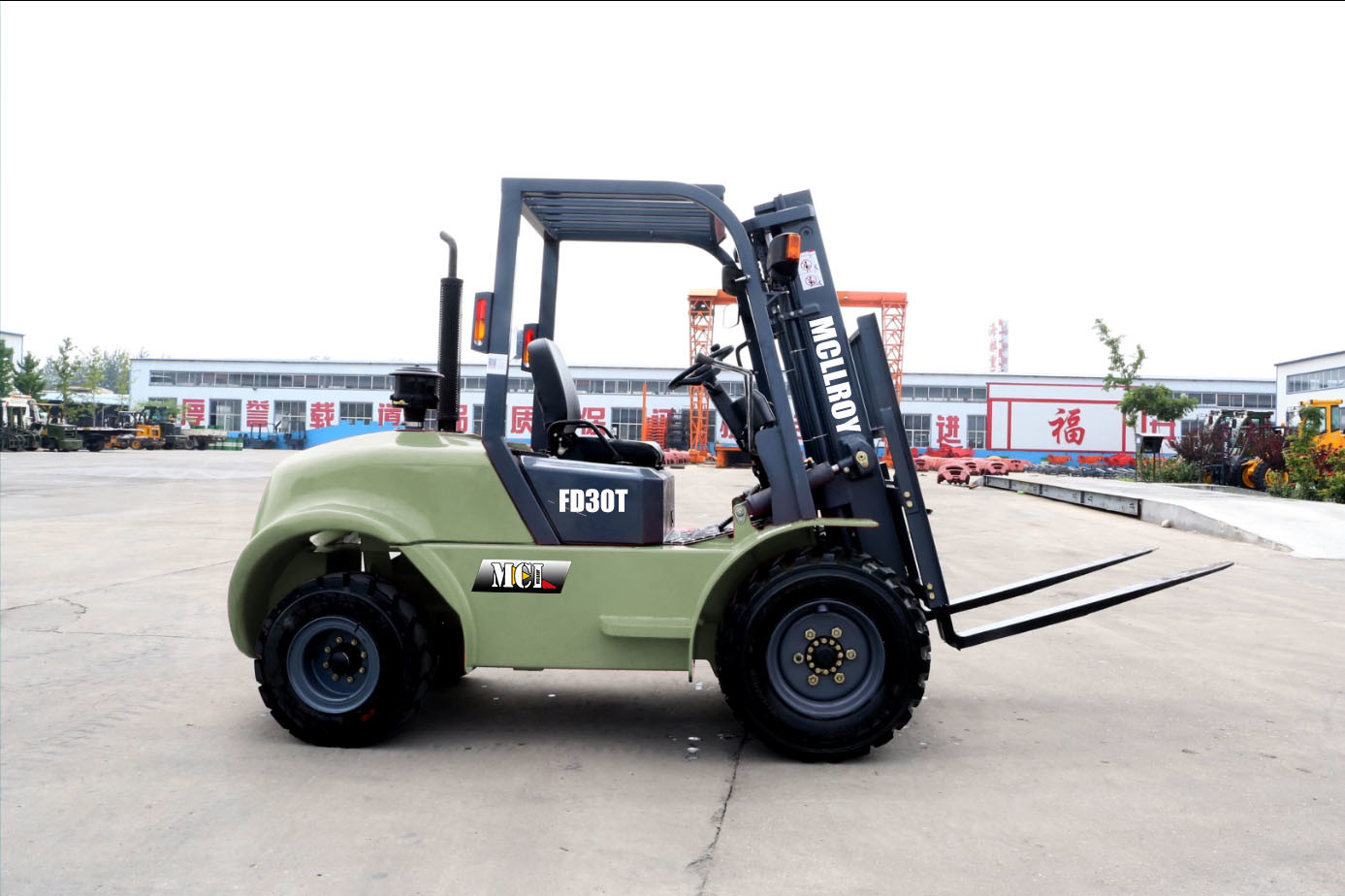

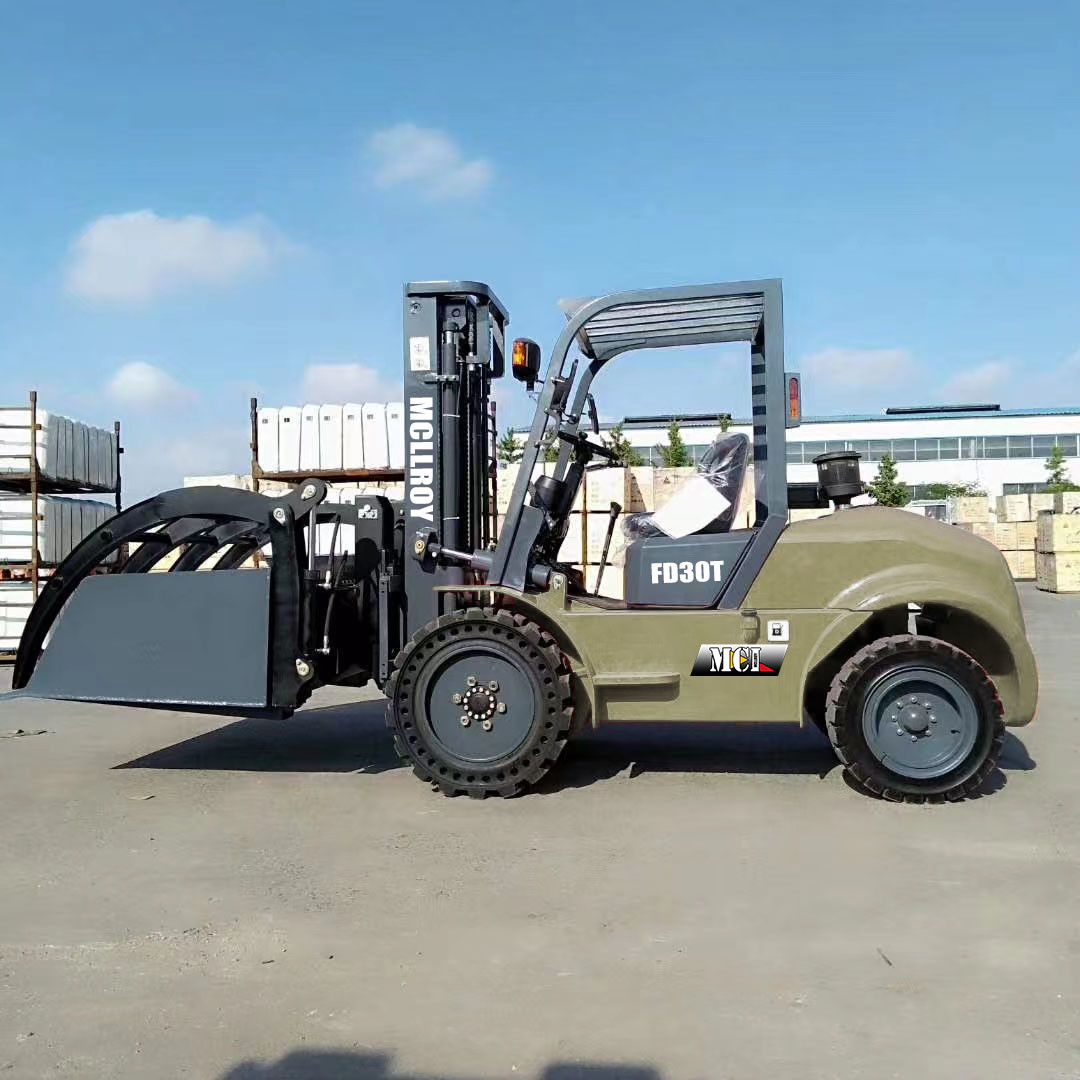

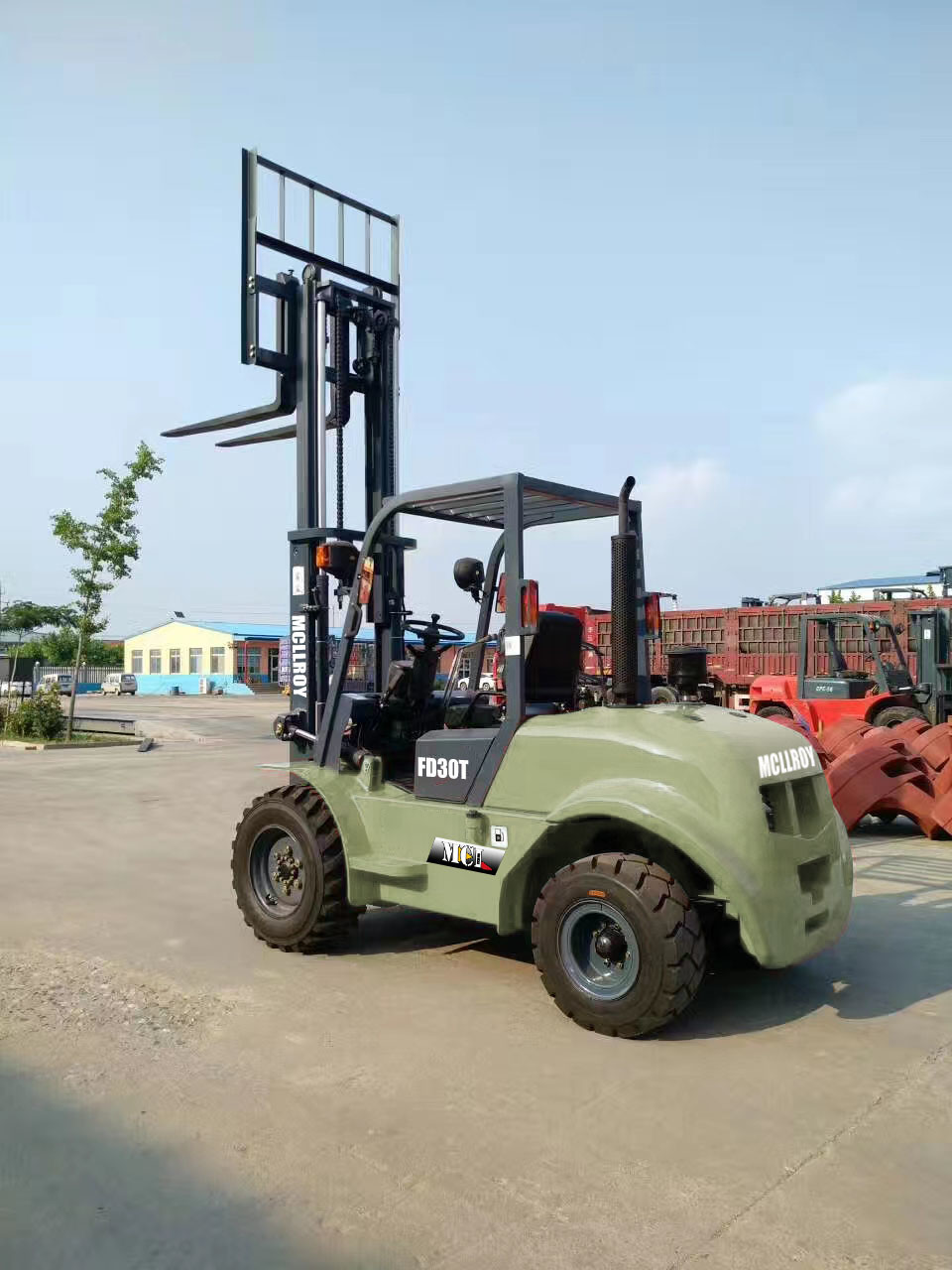

The MCLLROY’S FD30T-2/4 rough-terrain forklift is the ideal truck for extreme handling conditions. Quarries, mining operations, construction sites, wood industry are all activities for which this truck is extremely efficient. The MCLLROY masts offer excellent robustness on rough-terrain conditions, they lift up to 6.5 m. For a better performance, a wide choice of tires is available on this truck, you can adapt to all situations.
2. Specification
| Specification | FD30T-4WD | FD30T - 2WD |
| Rate Loading Weight | 3000 KG | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic Manual /Auto 2R,0,2F | Hydraulic auto 1R,0,1F |
| Fork Size | 920/1070/1220/1500 mm | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid | Air / Solid |
| Front Tire | 12-16.5-10PR | 12-16.5-14PR |
| Rear Tire | 12-16.5-10PR | 27x10-12-12PR |
| Overhead Guard Height | 2450 mm | 2210 mm |
| Overall Length(with / without fork) | 4160 /3090 mm | 2940 mm |
| Overall Width | 1600 mm | 1550 mm |
| Overall Height (Mast extended/lowered) |
3000mm : 4350/2235 mm | 3000mm : 4350/2185 mm |
| Total Weight | 4900 KG | 4900 KG |
| Angle of Mast inclination (forward /backward) |
6°/12° | 5°/15° |
| Load Center | 500 mm | 500 mm |
| Minimum Ground Clearance(no-loading) | 250 mm | Mast point: 220 mm Wheel base center point: 310 mm |
3. Details and Advantages
When developing the MCLLROY Two Wheel Drive Rough Terrain Forklift, comfort and ease of operation was at the top of the list.
Improved shock absorbers, compound engine damper and a full floating seat have all been applied for a better driving experience.
The 2WD Rough Terrain Forklift offers greater control and cornering stability even in harsh environments.
A more accurate steering response makes driving and lifting more precise. This makes it easier to change direction at high speed without the risk of the vehicle from going into a spin. In a normal two-wheel steering system, the rear wheels do not turn in the direction of the curve.
4.Certification
Product quality determines customer satisfaction thus the life span of a company.
MCLLROY not only acknowledged by the ISO9001:2000 international quality control system
and ISO 9001:2015 quality management system certification,but acquired the CE certificate.
5. Optional Configurations
| 1 | Solid tires (the Advanced brand or equivalent) |
|||
| 2 | Automatic transmission(1-4.5Ton) | |||
| 3 | Sideshift | |||
| 4 | Thicken Toyota seat (no shock absorber) | |||
| 5 | Toyota seat (with shock absorber) | |||
| 6 | Fork positioner | |||
| 7 | Closed cab | |||
| 8 | Double front tires(1-5Ton) | |||
| 9 | Normal double mast:3300-4000mm. | |||
| 10 | Full free double mast:3000-4000mm. | |||
| 11 | Full free triplex mast:4500-7500mm. | |||
| 12 | Fork length:920/1370/1550 mm | |||
| 13 | Extension fork | |||
6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| A | FD20-35-C1139 | Charging Pump assembly | 1 | |
| 1 | FD20-35-C1140 | Case,Pump | 1 | |
| 2 | FD20-35-C1141 | Bushing | 1 | |
| 3 | FD20-35-C1142 | Washer | 2 | |
| 4 | FD20-35-C1143 | Seal,oil | 1 | |
| 5 | FD20-35-C1144 | Snap O-ring | 1 | |
| 6 | FD20-35-C1145 | Support,starter | 1 | |
| 7 | FD20-35-C1146 | Pin | 2 | |
| 8 | FD20-35-C1147 | Gear,drive | 1 | |
| 9 | FD20-35-C1148 | Bushing | 1 | |
| 10 | FD20-35-C1149 | Gear,drven | 1 | |
| 11 | FD20-35-C1150 | Bolt | 1 | |
| 12 | FD20-35-C1151 | Bolt | 1 |
